18 Circuit 15A Customized Slip Ring , Crane Slip Ring Diameter 50mm

Name: 18 Circuit 15A Customized Slip Ring Crane Slip Ring Diameter 50mm
Brand: JINPAT
Price: 1 USD

Quality 18 Circuit 15A Customized Slip Ring , Crane Slip Ring Diameter 50mm for sale

Brand Name : JINPAT

Model Number : LPT050-1815

Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : TT/CC/Paypal

Supply Ability : 100K units/week

Delivery Time : 2 weeks ARO

Packaging Details : Standard/On Request

Via diameter : 50mm

Working speed : 0~300rpm

Rotor : 300mm

Contact Now

We JINPAT cable reel slip ring LPT series suit for the application of crane. Like the slip rings LPT025/LPT038/LPT050 and so on.

LPT050-1815 hallow shalft slip ring features 18 circuits and 15 A per circuit. It uses our fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates.In addition, fiber brushes do not require lubrication and produce virtually no wear debris. The LPT050 features field serviceable brush blocks.

Specification
Circuits	1-24 circuits
Operating Speed	0-300rpm
Working Temperature	-20℃~ +60℃
Working Humidity	60%RH or higher
Voltage Rating	240VAC/DC or higher
Current Rating	2A/5A/10A/15A per circuit
Dielectric Strength	≥1000V@50Hz between each circuit
Insulation Resistance	500MΩ@ 500VDC
Electrical Noise	30mΩ Min
Contact Material	Precious metal
Lead Wire Length	Standard 300mm (11.811inch)
Via diameter	50mm

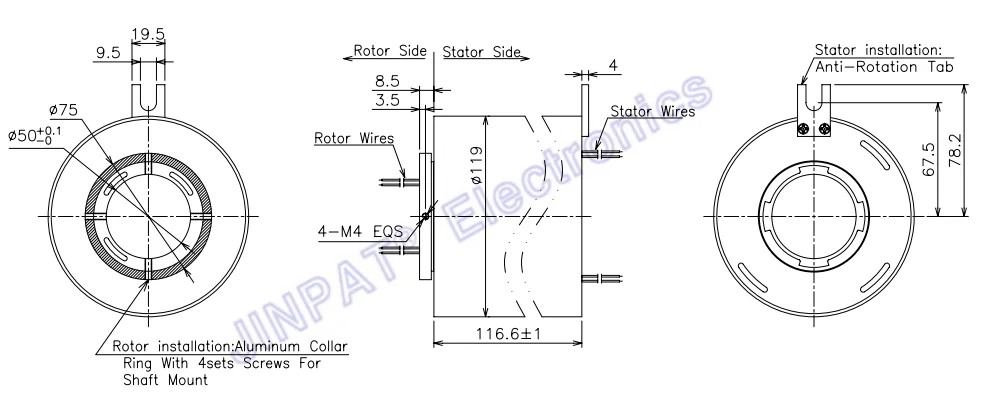

Product outline drawing

18 Circuit 15A Customized Slip Ring , Crane Slip Ring Diameter 50mm

Advantages

18 Circuit 15A Customized Slip Ring , Crane Slip Ring Diameter 50mm
